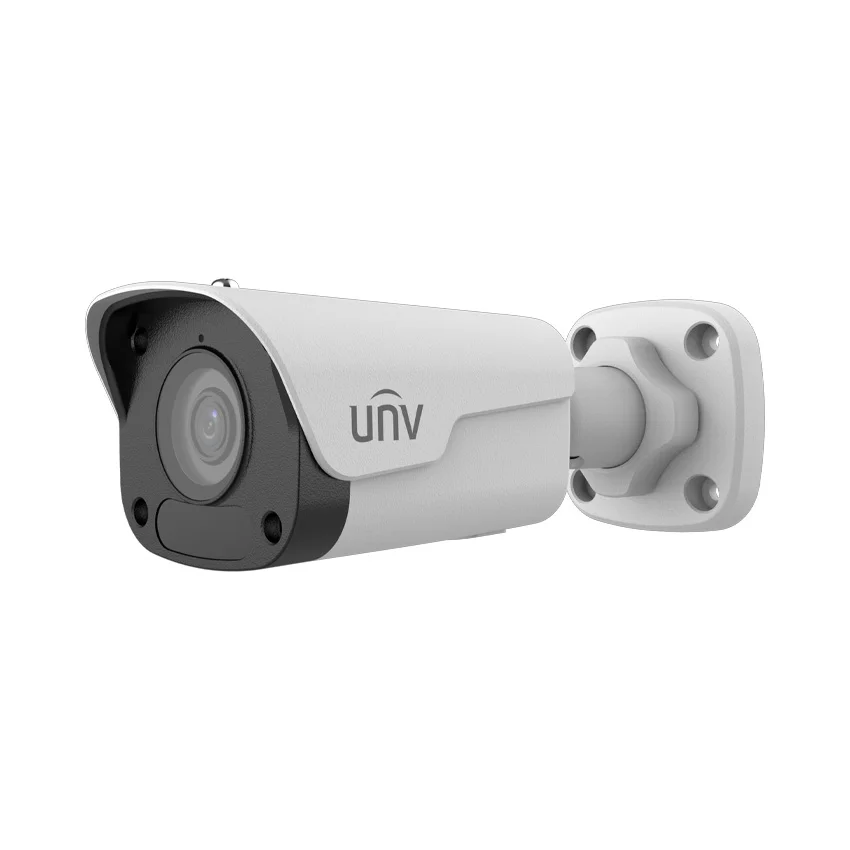

Loại sản phẩm: | Hệ thống camera giám sát |
Hãng: | UNV |
Loại camera kết nối: | IP Camera |
Độ phân giải ghi hình: | 4.0 megapixel |
Sensor: | 1/2.9", 4.0 megapixel, progressive scan, CMOS |
Min. Illumination: | Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR on |
Day/Night: | IR-cut filter with auto switch (ICR) |
Shutter: | Auto/Manual, 1 ~ 1/100000s |
WDR: | 120dB |
S/N: | >52dB |
Lens: | 2.8mm @F2.0 ~ 4.0mm @F2.0 |
Iris: | Fixed |
Field of View (H): | 101.5°~84.1° |
Field of View (V): | 55.6°~45.1° |
Field of View (D): | 111.6°~89.5° |
IR Range: | Up to 30m (98ft) |
Wavelength: | 850nm |
IR On/Off Control: | Auto/Manual |
Video Compression: | Ultra 265, H.265, H.264, MJPEG |
H.264 code profile: | Baseline profile, Main profile, High profile |
Frame Rate: | Main Stream: 4MP (2688*1520),Max 25fps;4MP (2560*1440),Max 25fps; 3MP (2304*1296),Max 30fps; 1080P (1920*1080),Max 30fps;
Sub Stream: 720P (1280*720),Max 30fps; D1 (720*576),Max 30fps; 640*360,Max 30fps; |
Video Bit Rate: | 128 Kbps~6 Mbps |
ROI: | Up to 8 areas |
OSD: | Up to 4 OSDs |
Privacy Mask: | Up to 4 areas |
U-code: | Support |
Video Stream: | Dual streams |
Digital noise reduction: | 2D/3D DNR |
Smart IR: | Support |
Flip: | Góc quay 180° |
HLC: | Support |
BLC: | Support |
Defog: | Digital Defog |
Basic Detection: | Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, Tampering alarm, Audio Detection |
General Function: | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication |
Audio Compression: | G.711U, G.711A |
Audio Bitrate: | 64 Kbps |
Two-way Audio: | Support |
Suppression: | Support |
Sampling Rate: | 8KHz |
Edge Storage: | Micro SD, up to 128GB |
Network Storage: | ANR,NAS(NFS) |
Protocols: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
Compatible Integration: | ONVIF (Profile S, Profile G, Profile T),API,SDK |
Security: | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
User/Host: | Up to 32 users. 3 user levels: administrator, operator and common user |
Client: | EZStation
EZLive
EZView |
Web Browser: | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Audio I/O: | N/A |
Alarm I/O: | N/A |
Serial Port: | N/A |
Built-in Mic | Support |
Built-in Speaker: | N/A |
WIFI: | N/A |
Network: | 1 * RJ45 10M/100M Base-TX Ethernet |
Video Output: | 1 BNC |
EMC: | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014) |
Safety: | CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment: | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
Protection: | IP67 |
Power: | DC12V(±25%),PoE(IEEE 802.3af) |
Power consumption: Max 5.5W |
Power Interface: | Ø 5.5mm coaxial power plug |
Dimensions: | 166 × 63 × 62mm (6.5” × 2.5” × 2.5”) |
Weight: | 0.39kg (0.86lb) |
Material: | Graphene + Metal |
Working Environment: | -30°C ~ 60°C (-22°F ~ 140°F),Humidity: ≤95% RH (non-condensing) |
Storage Environment: | -30°C ~ 60°C (-22°F ~ 140°F),Humidity: ≤95% RH (non-condensing) |
Surge protection: | 4KV |
Reset Button: | Support |
