Chuẩn và Giao thức | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |

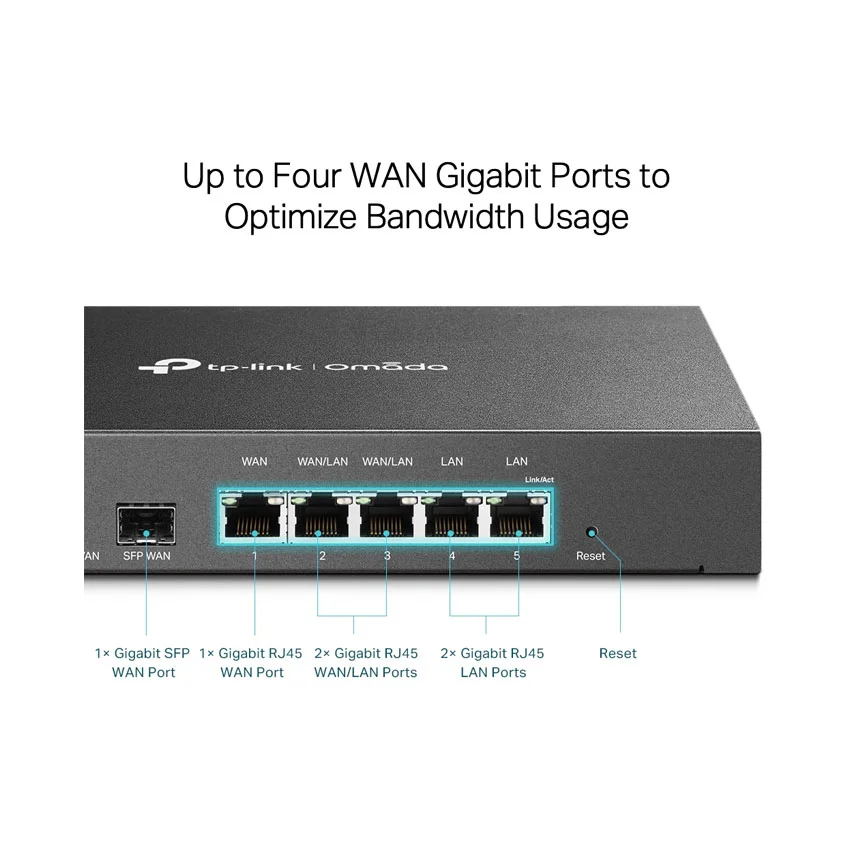

Giao diện | • 1 Cổng WAN Gigabit SFP cố định
• 1 Cổng WAN Gigabit RJ45 cố định
• 2 cổng LAN Gigabit RJ45 cố định
• 2 cổng WAN / LAN Gigabit RJ45 có thể thay đổi |
Mạng Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
Nút | Nút Reset |
Bộ cấp nguồn | 100–240 V~50/60 Hz |
Flash | SPI 4MB + NAND 128MB |
DRAM | 512MB |
LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
Kích thước ( R x D x C ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
Concurrent Session | 150,000 |
New Sessions /Second | 5,500 |
NAT (Static IP) | 940.3 Mbps / 940.2 Mbps |
NAT(DHCP) | 940.3 Mbps / 940.4 Mbps |
NAT(PPPoE) | 939.7 Mbps / 937.9 Mbps |
NAT (L2TP) | 918.0 Mbps / 917.9 Mbps |
NAT (PPTP) | 918.9 Mbps / 914.7 Mbps |
IPsec VPN Throughput (AES256) | 291.6 Mbps |
IPsec VPN Throughput | 291.6 Mbps |
L2TP VPN Throughput | Unencrypted: 1360.3 Mbps
Encrypted: 202.3 Mbps |
PPTP VPN Throughput | Unencrypted: 1379.3 Mbps
Encrypted: 115.6 Mbps |
66 Byte Packet forwarding rate | 486,918 pps / 488,372 pps |
1,518 Byte Packet forwarding rate | 81,274 pps / 81,274 pps |
Dạng kết nối WAN | • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP |
MAC Clone | Modify WAN/LAN MAC Address |
DHCP | • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
IPv6 | Developing |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy |
ACL | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing
• Policy Routing |
Kiếm soát băng tần | • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth |
Load Balance | •Cân Bằng Tải Thông Minh
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection |
NAT | • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
Bảo mật | • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management |
Session Limit | IP-based Session Limit |

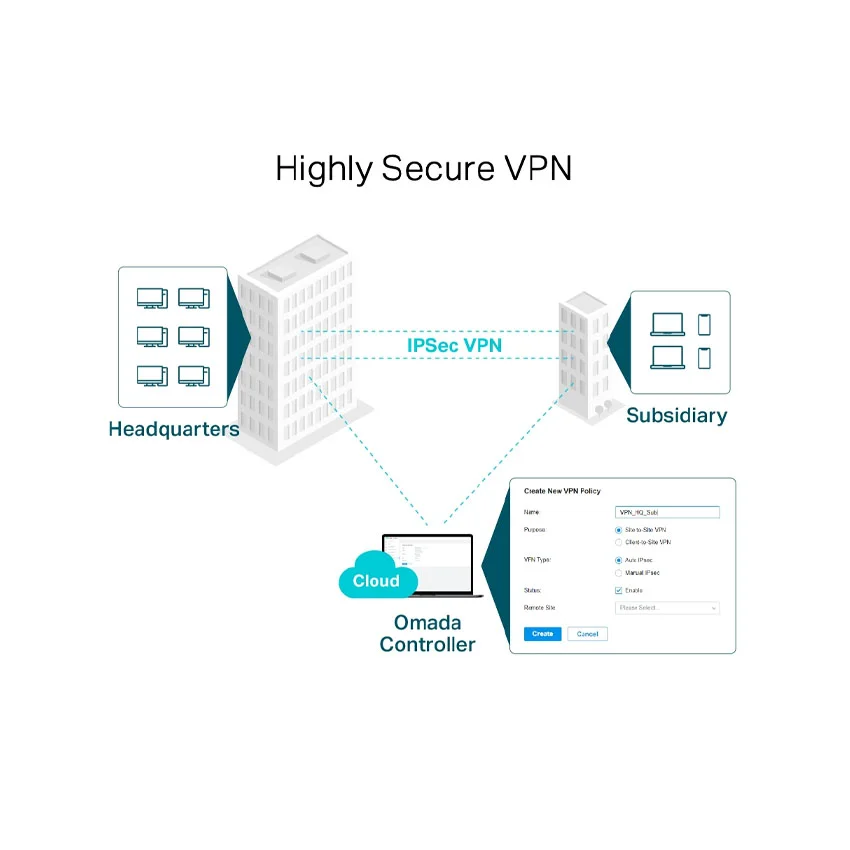

IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server
• 10 PPTP VPN Clients
• 50 Tunnels
• PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server
• 10 L2TP VPN Clients
• 50 Tunnels
• L2TP over IPSec |
OpenVPN | • OpenVPN Server
• 10 OpenVPN Clients
• 50 OpenVPN Tunnels |
Bộ lọc | WEB Group Filtering
URL Filtering
Web Security |
ARP Inspection | • Sending GARP Packets
• ARP Scanning
• IP-MAC Binding |
Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
Access Control | Source/Destination IP Based Access Control |
Web Authentication | • No Authentication
• Simple Password*
• Hotspot（Local User / Voucher* / SMS* / Radius*）
• External Radius Sever
• External Portal Sever*
• Facebook* |
Omada App | Có |

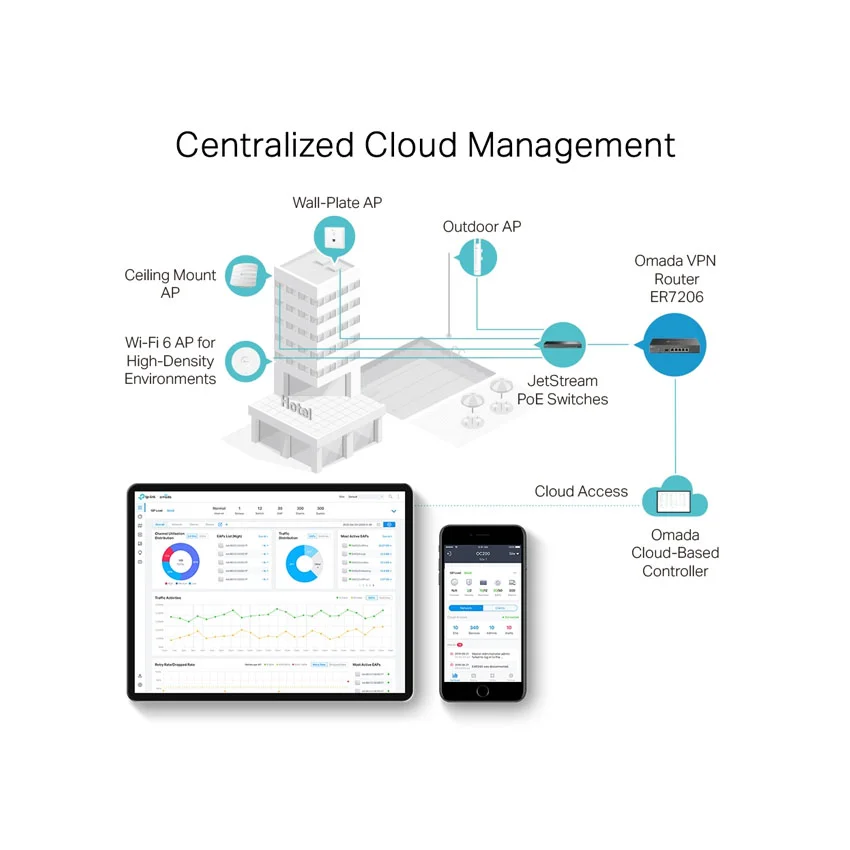

Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
Cloud Access | Có (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Dịch vụ | DNS Động (Dyndns, No-IP, Peanuthull, Comexe) |
Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)** |
Chứng chỉ | CE, FCC, RoHS |

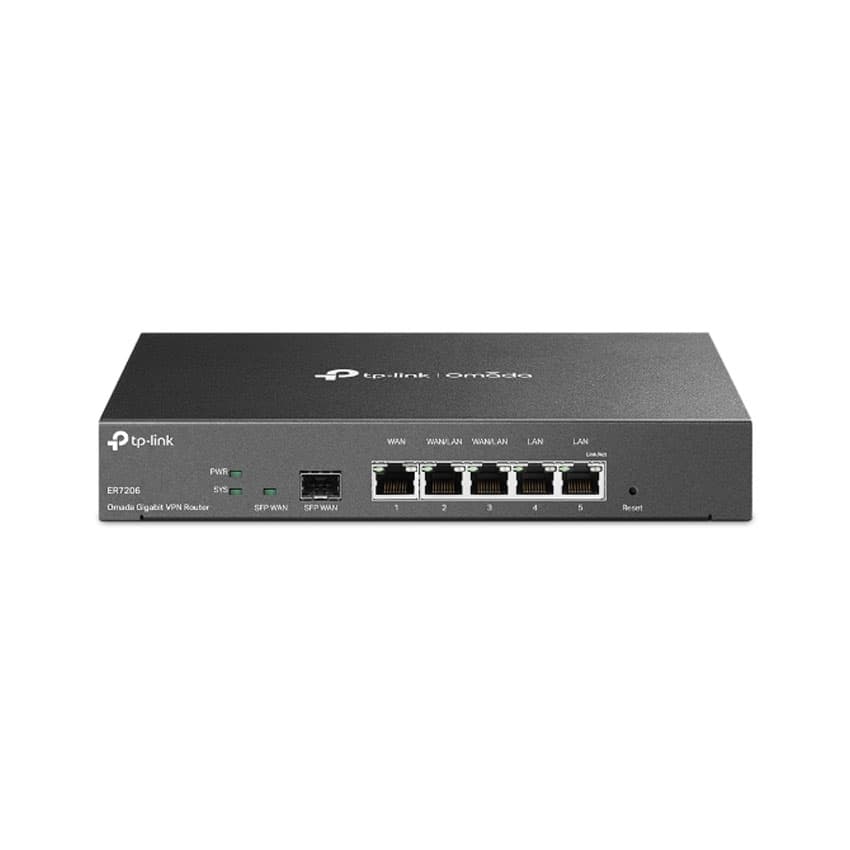

Sản phẩm bao gồm | • ER7206
• Dây điện
• Hướng dẫn cài đặt nhanh |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
Môi trường | • Nhiệt độ hoạt động: 0–40 ℃ (32–104 ℉)
• Nhiệt độ bảo quản: -40–70 ℃ (-40–158 ℉)
• Độ ẩm hoạt động: 10–90% RH không ngưng tụ
• Độ ẩm lưu trữ: 5–90% RH không ngưng tụ |
