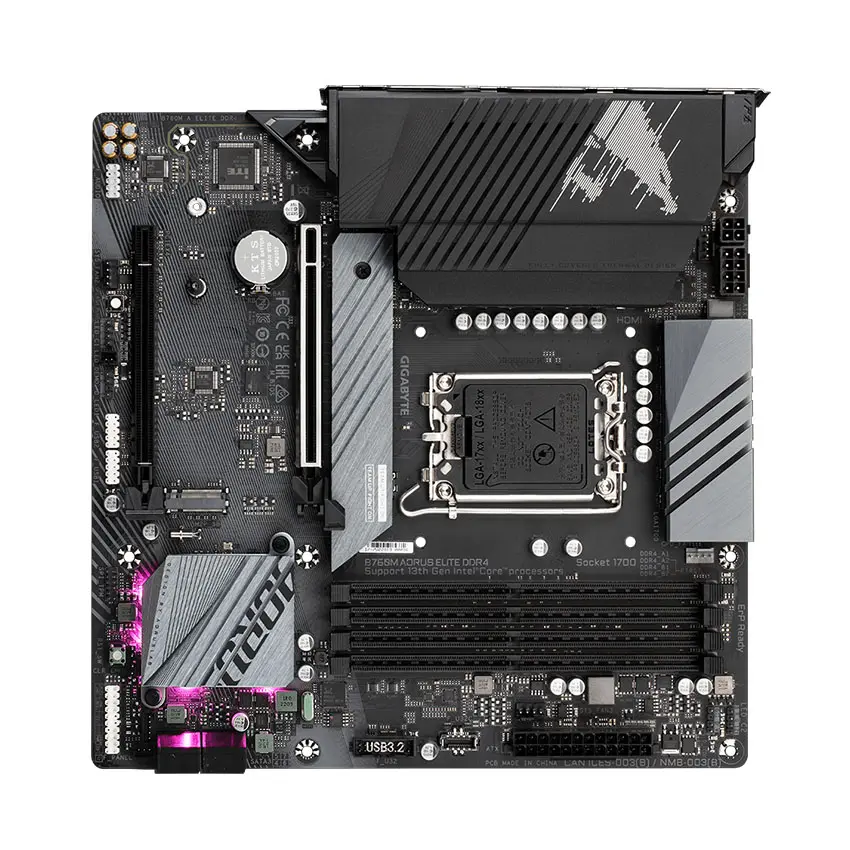

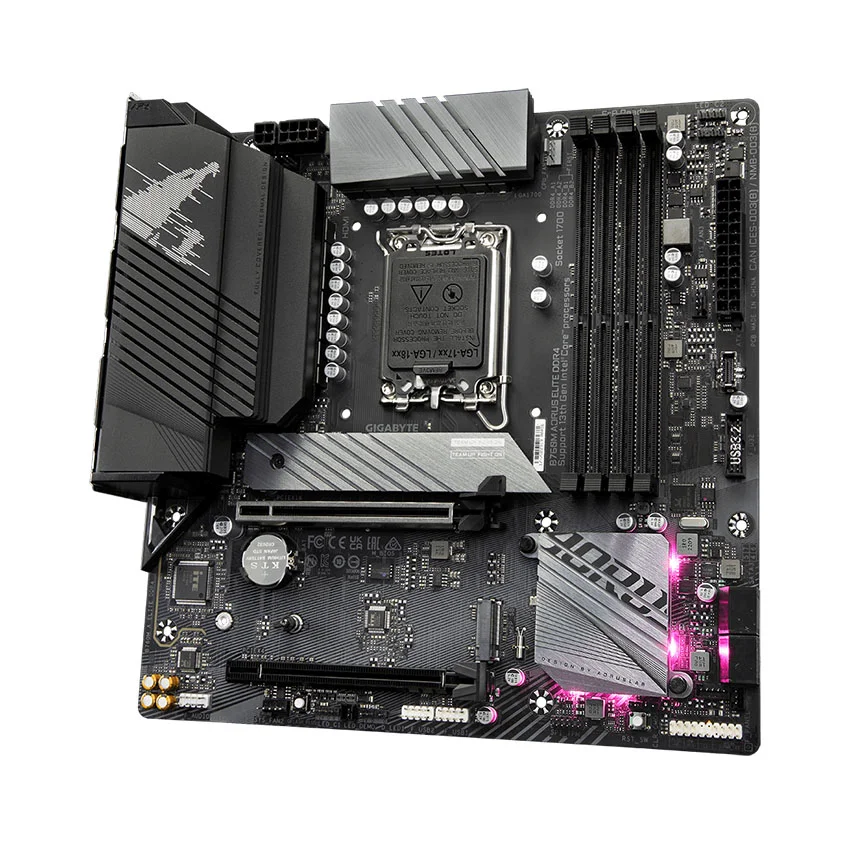

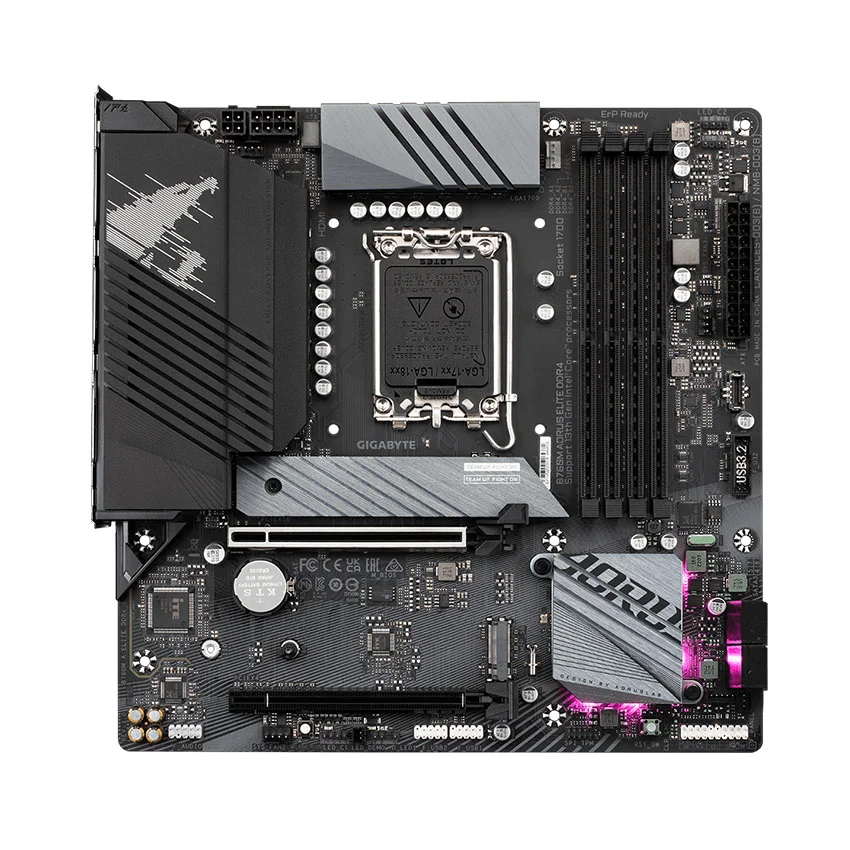

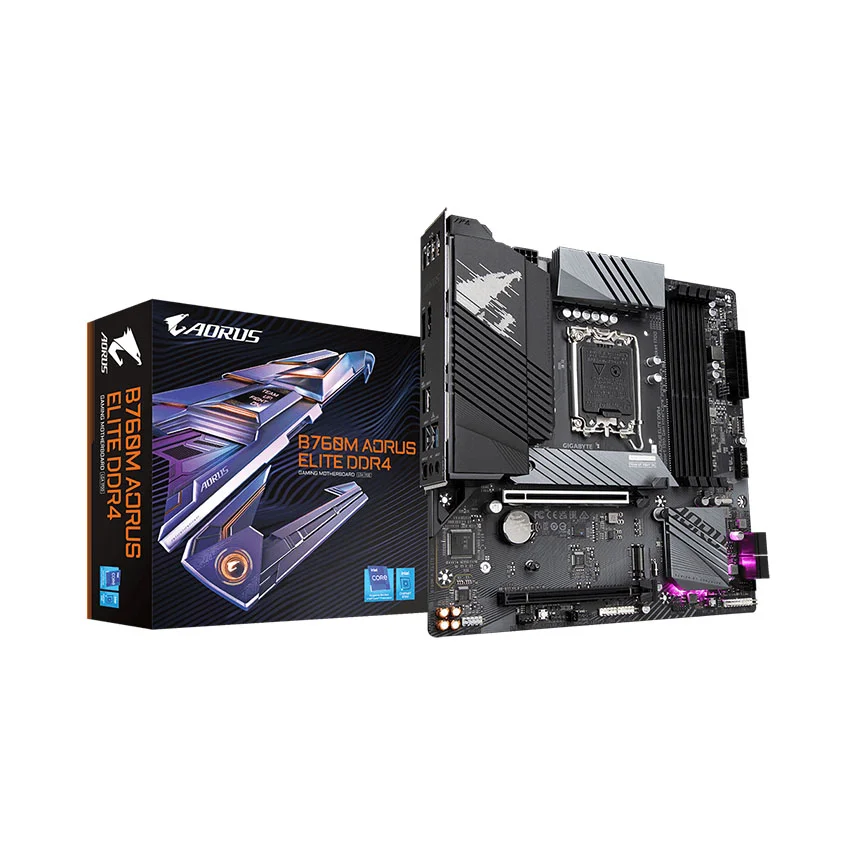

Hình ảnh và video sản phẩm
Giá niêm yết:
4.999.000 VND
Giá mua online: 3.599.000 VND Tiết kiệm 1.400.000 VND (-28%)
Giá mua trả góp (6 tháng): 599.834 VND / tháng
Trả góp qua thẻ VISA (12 tháng): 299.917 VND / tháng
Giá đã bao gồm VAT
Thông số nổi bật
- Chipset: Intel B760 - Tương thích với CPU intel thế hệ 12-13
- Socket: Intel LGA 1700
- Kích thước: M-ATX
- Số khe RAM: 4 khe (Tối đa 128GB)
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | GIGABYTE |
| Model | B760M AORUS ELITE DDR4 |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700 |
| Chipset | B760 |
| RAM hỗ trợ | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory+ |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 22.5cm |
Mô tả sản phẩm
Đang cập nhật.........................................................................................
Lưu ý: Bài viết và hình ảnh mang tính tham khảo. Cấu hình và đặc tính sản phẩm có thể thay đổi theo từng phiên bản và thời điểm. Quý khách vui lòng xem bảng thông số kỹ thuật chi tiết hoặc liên hệ tư vấn trước khi mua.
