To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.
Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ATX 3.0
ATX 2.0
Total power excursion
Toughpower PF3 series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.
As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.
1 GPU Power Connector
2 GPU Power Connector
3 GPU Power Connector
16 pin GPU Power Connector
80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.
The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.

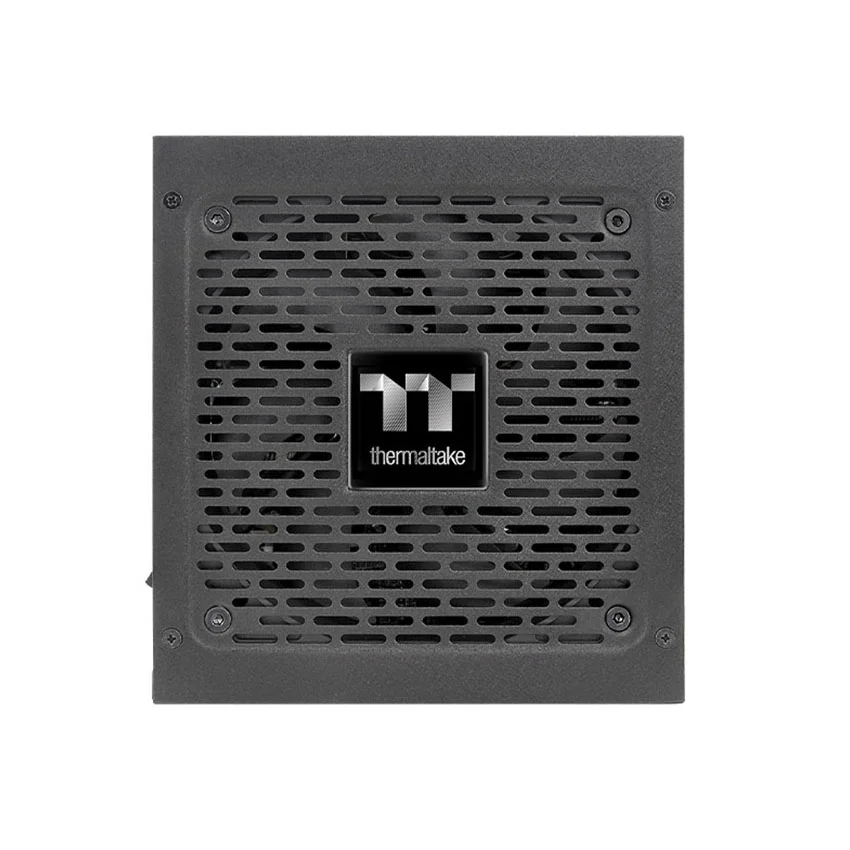

Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Furthermore, the Smart Zero Fan will adjust the fan speed and minimizes undesired noise.
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Intel Specification PF3 series
The voltage regulation is more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.
Intel Specification PF3 series
During a power interruption, your computer might shut down or reboot. We make sure that the PF3 series will deliver at least 17ms at 100% workload, without system reboot or resetting.
We make sure the PF3 series will deliver at least 17ms at 100% workload, without system reboot or resetting.
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC Input |
Input Voltage: 100 - 240Vac |
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
20A |
20A |
100A |
0.3A |
3.0A |
| Max Output Power |
100W |
1200W |
3.6W |
15W |
|
| Total Power |
1200W |
||||

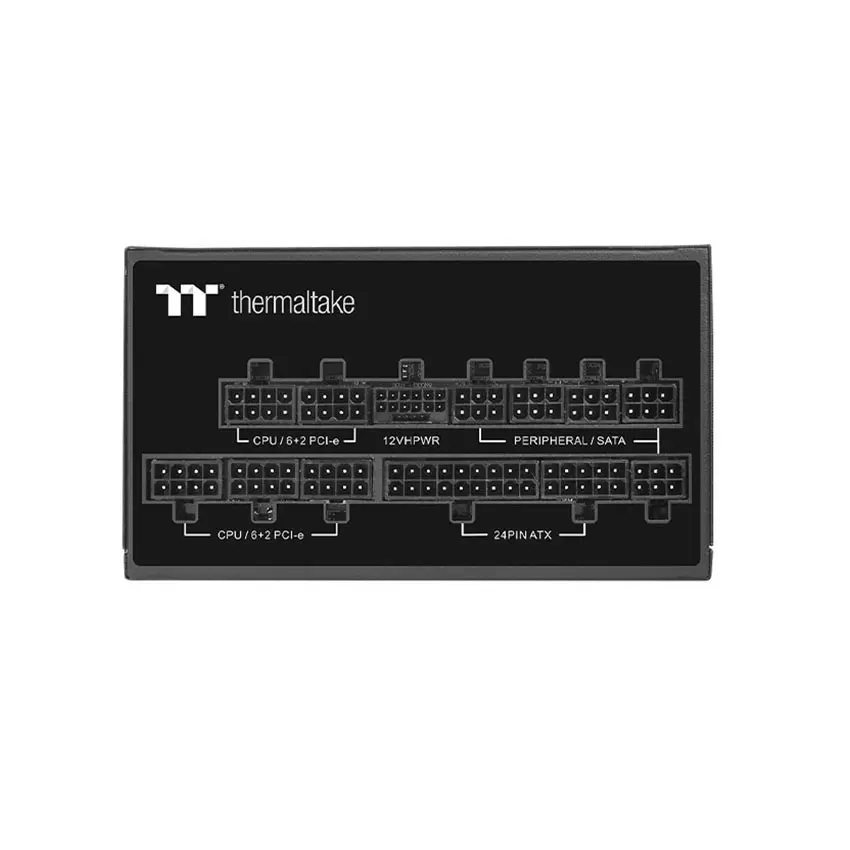

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
| Wattage | Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|---|
| Toughpower PF3 1200W | Main Power (24Pin) |
 |
1 | 1 | 600mm |
| ATX 12V (4+4Pin) |
 |
2 | 2 | 650mm | |
| PCIe (6+2Pin) |
 |
5 | 2 | 500mm+150mm | |
| 1 | 500mm | ||||
| PCIe 600W (12+4Pin) |
 |
1 | 1 | 600mm | |
| SATA |  |
12 | 3 | 500mm+150mm+150mm+150mm | |
| Peripheral |  |
8 | 2 | 500mm+150mm+150mm+150mm | |
| FDD Adapter |  |
1 | 1 | 150mm | |
ghout its entire operation range, from almost zero noise output to full load.
